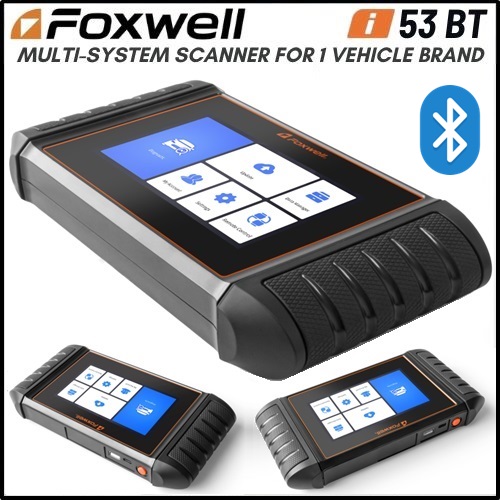

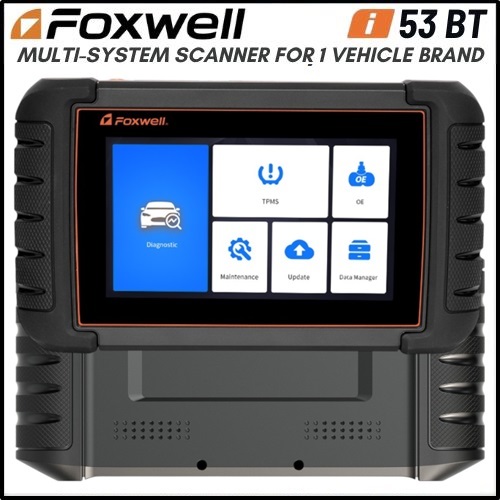

Foxwell i53BT Multi-System Tablet Scanner

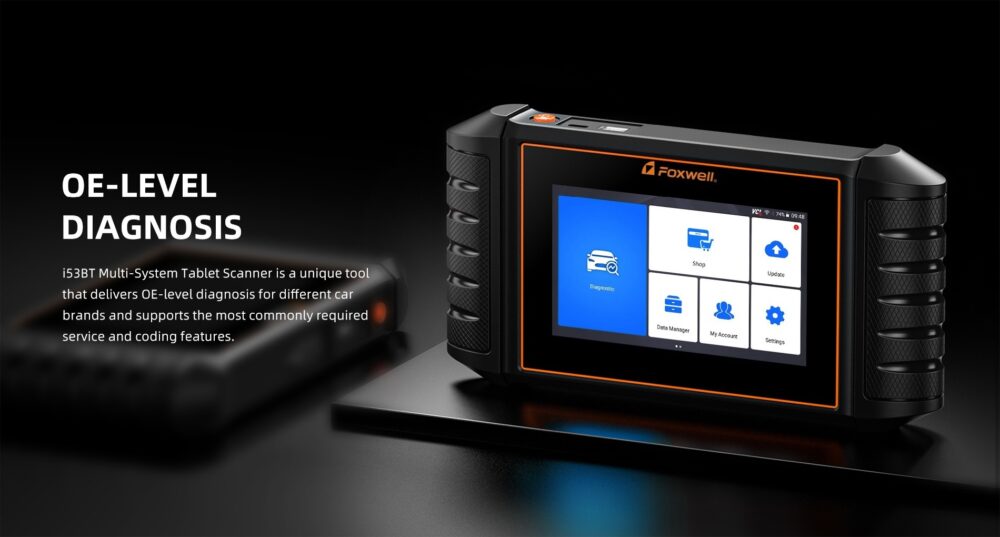

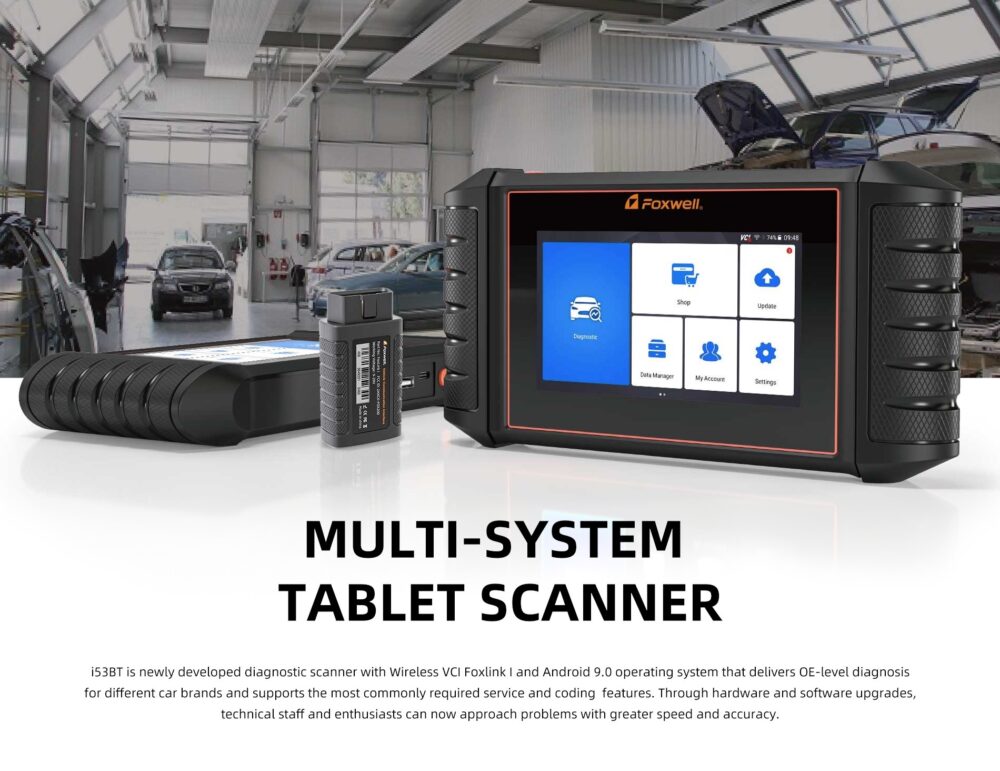

The Foxwell i53BT is newly developed diagnostic scanner with Wireless VCI Foxlink I and Android 9.0 operating system that delivers OE-level diagnosis for different car brands and supports the most commonly required service and coding features. Through hardware and software upgrades, technical staff and enthusiasts can now approach problems with greater speed and accuracy.

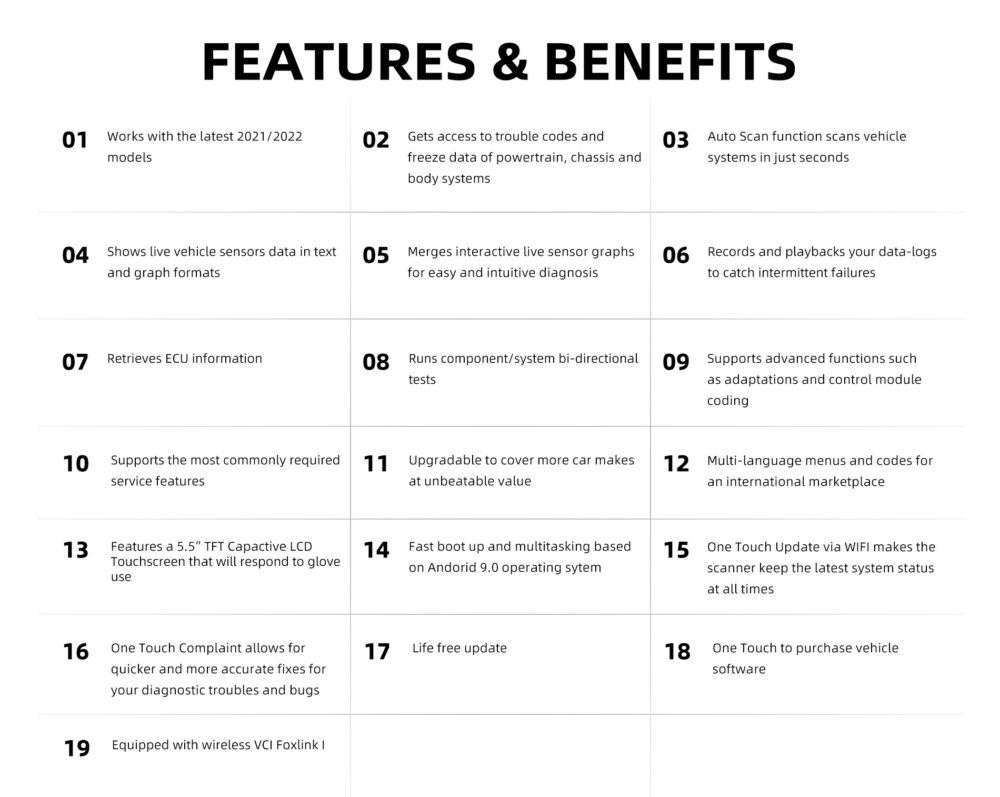

Foxwell i53BT Features & Benefits:
- Work with the latest 2021 / 2022 models.
- 1 Free Vehicle Brand and more vehicles brands can be purchase Optional.
- Get access to trouble codes and freeze data of powertrain, chassis and body systems.
- Auto Scan function scans vehicle systems in just seconds.
- Shows live vehicle sensors data in text and graph formats.
- Merges interactive live sensor graphs foe easy and intuitive diagnosis.
- Records and playback your data-logs to catch intermittent failures.
- Retrieves ECU information.
- Runs component / system Bi-Directional tests.
- Supports advanced functions like adaption and control module coding.
- Support the most commonly required service features.
- Upgradable to cover more vehicle makes at unbeatable value.
- Multi-language menus and codes for an international marketplace.
- Features a 5.5” TFT Capacitive LCD touchscreen that will respond to glove use.
- Fast boot up and multitasking based on android 9.0 operating system.
- One touch update via WIFI, makes the scanner keep the latest software system status at all times.
- One touch Complaint allows for quicker and more accurate fixes for your diagnostic troubles and bugs.
- Lifetime free updates.
- One touch to purchase Optional vehicle software.
- Equipped with wireless VCI Foxlink
Vehicle Coverage:
The i53 Scanner comes with 1 free vehicle brand and can take up to 5 vehicle brands more vehicle brands can be purchased anytime at an extra cost.
Below is a list of Vehicle Brands that can be purchased Additionally.
- Aston Martin
- Benz (Includes Mercedes Benz, Maybach, Smart and Sprinter.)
- BMW (Includes BMW, Mini and Roll-Royce.)
- Chrysler (Includes Chrysler, Jeep and Dodge.)
- Daewoo
- Daihatsu
- Ferrari
- Fiat (Includes Abarth, Alfa Romeo, Fiat, Lancia.)
- Ford
- Fuso
- GM
- Hyundai (Includes Hyundai and Kia.)
- Honda (Includes Honda and Acura.)
- Isuzu
- Land Rover (Includes Land Rover and Jaguar.)
- Maserati
- Mazda
- Mitsubishi
- Nissan (Includes Nissan and Infiniti.)
- Opel (Includes Opel and Vauxhall.)
- Peugeot (Includes Peugeot and Citroen.)
- Porsche
- Proton (Includes Proton and Perodua.)
- Renault (Includes Renault, Dacia and Samsung.)
- Saab
- Ssangyong
- Subaru
- Suzuki
- Tata
- Tesla
- Toyota (Includes Toyota, Lexus and Scion.)
- Volvo
- VW (Includes VW, VW CN, Audi, Bentley, Bugatti, Lamborghini, Seat and Skoda.)
Vehicle Coverage Check List https://www.foxwelltech.us/support-fun-list.html
Foxwell i53BT Specifications:
- Screen: 5.5” Diagonal, daylight readable colour LCD screen 1280*720 pixel.
- Operation System: Android 9.0.
- CPU: Quad-Core 1.3GHz.
- Memory: 1GB DDR4.
- SSD Hard Drive: 32GB.
- Communication interface: Build-In WIFI 802.11 b/g/n Wireless LAN, USB 2.0 OTG / Standard USB 2.0 Host, Bluetooth Specifications v2.1+EDR; Bluetooth 4.0Low, Energy (LE) (10-20M)
- Build-in Battery: 4000mah, Lithium-polymer battery, chargeable via 5v USB power supply.
- Working Temperature: -10 to 70 C
- Store Temperature: -20 to 80 C
- Operating Humidity: 5%-95% non-Condensing.
Foxwell i53BT Supported Protocols:
- ISO9141-2, ISO14230-2
- ISO15765-4
- K/L Lines
- Double K Line SAE-J1850PWM
- CAN ISO 11898
- High-Speed
- Middle-Speed
- Low-Speed
- Single wire CAN
- KW81
- KW82
- GM UART
- UART
- Echo Byte Protocols
- Honda Diag-H Protocol
- TP2.0
- TP1.6
- SAE J1939
- SAE J1939
- SAE J1708
- Fault-Tolerant Can

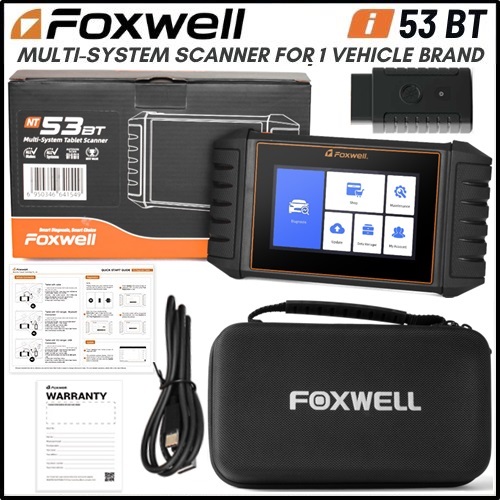

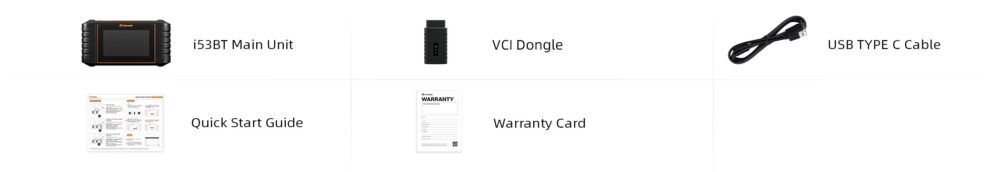

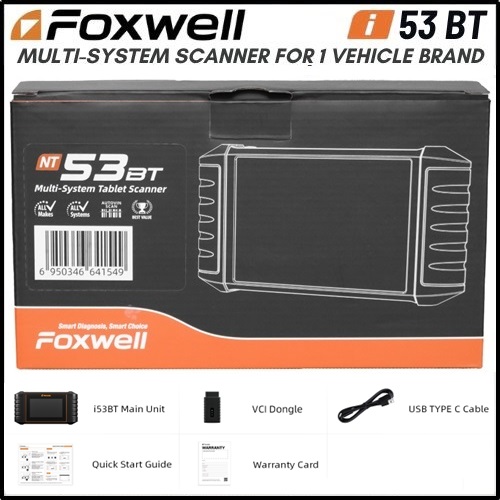

Package List:
- i53BT Main Unit
- VCI Dongle
- USB Type-C Cable
- Quick Start Guide
- Warranty Card
