Foxwell OS100 Oscilloscope


SKU: Foxwell OS100 Category: Tag:

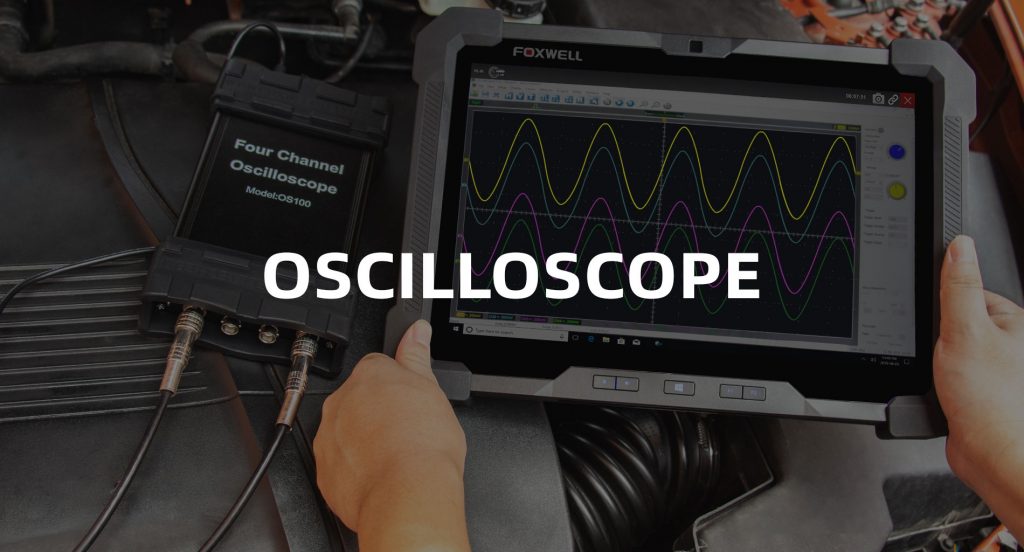

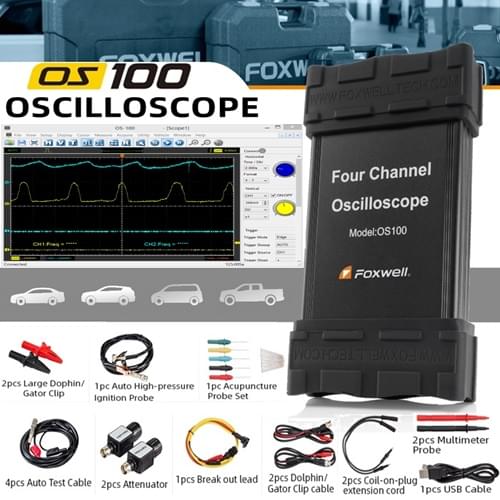

Foxwell OS100 Oscilloscope

The Foxwell OS100 Oscilloscope is an essential part of part of the diagnostic box. VS100 is a powerful diagnostic tool and comes complete with over 80 guided tests. It is continually developed to ensure it keeps with the latest vehicle technology, and remain intuitive and easy to use. It is an essential partner to your serial diagnostic tool, technical information and personal knowledge.

Foxwell OS100 Oscilloscope

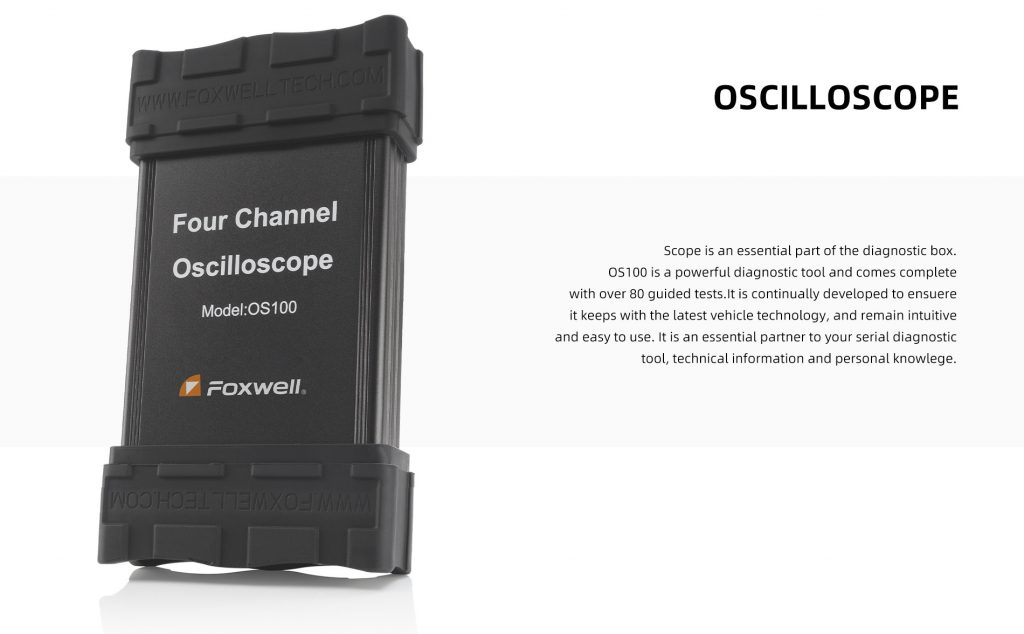

Foxwell OS100 Oscilloscope 1

Features and Benefits:

  • Equipped with over 80 types of automotive measurement function.
  • First Diagnosis: Intake manifold vacuum & ignition, petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition and starting exhaust ignition.
  • Ignition: primary and secondary.
  • Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position.
  • Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus.
  • Performer: Petrol/Diesel.
  • Starter and charging circuits.
  • Fit for the portable computers, table PC and suitable for wild mobile use and business trip use.
  • Support WIN10/ WIN8/ WIN7 etc.
  • USB 2.0 interface plug and play, and no need extra power supply.
  • Over 20 automatic measurement functions, PASS/FAIL Check function, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
  • 4 isolated channels, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth.
  • The waveform data could be output to EXCEL, BMP, or JPG format.
  • Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide and X-Y display.
  • FFT spectrum analyzer.
  • One computer could connect with multiple oscilloscopes, expanding the channel number easily.
  • Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.

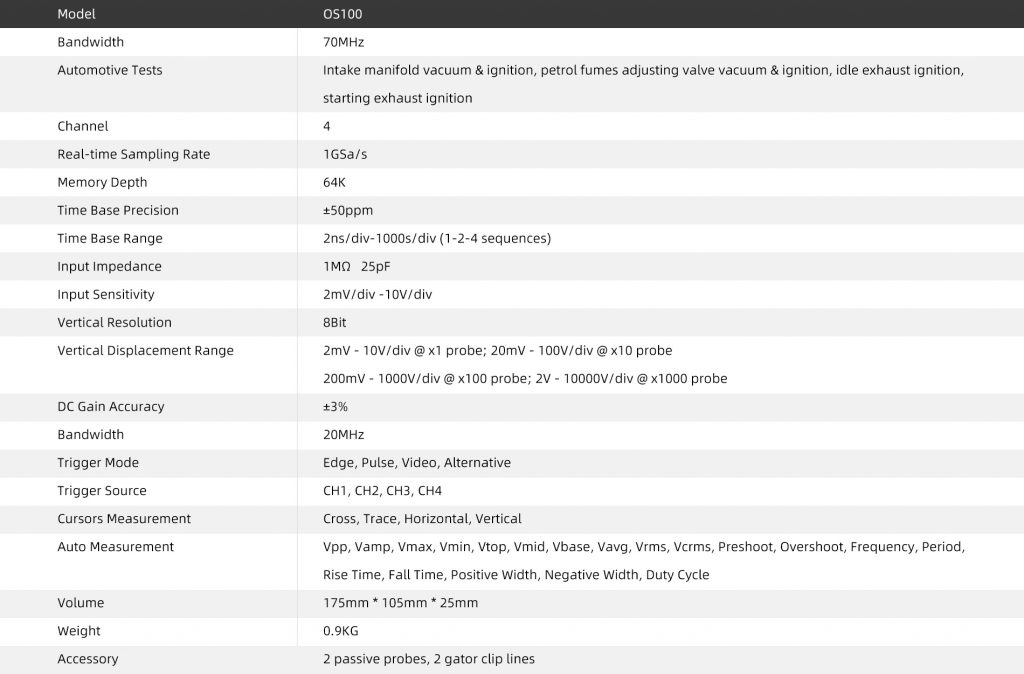

Foxwell OS100 Oscilloscope Specifications:

Foxwell OS100 Oscilloscope Specifications

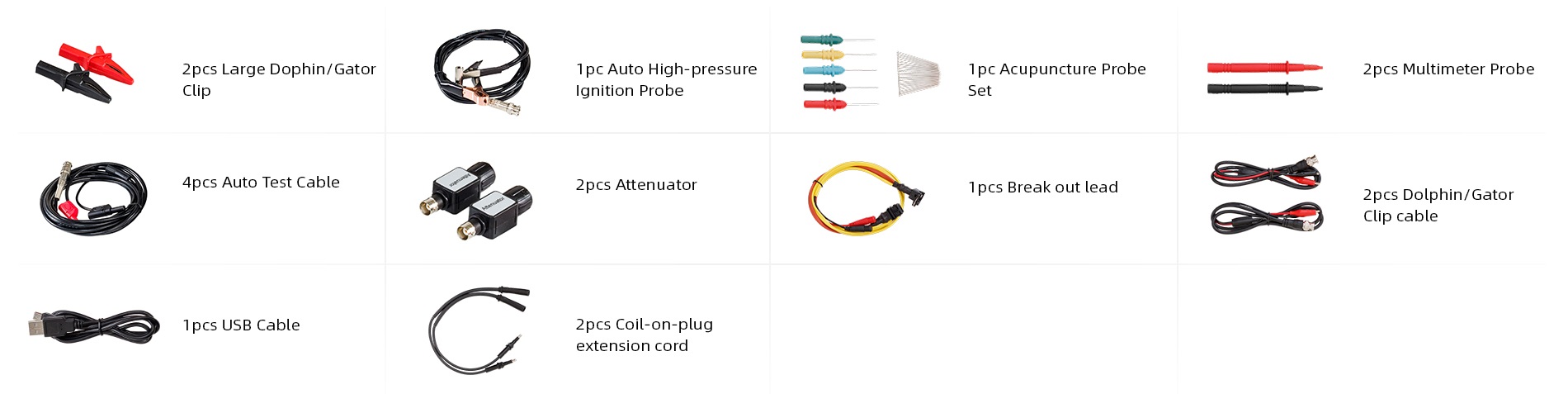

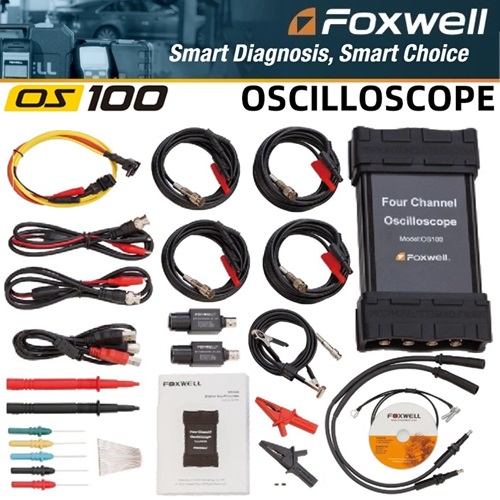

Foxwell OS100 Oscilloscope Kit Includes:

  • 2pcs Large Dophin/Gator Clip
  • 1pc Auto High-pressure Ignition Probe
  • 1pc Acupuncture Probe Set
  • 2pcs Multimeter Probe
  • 4pcs Auto Test Cable
  • 2pcs Attenuator
  • 1pcs Break out lead
  • 2pcs Dolphin/Gator Clip cable
  • 1pcs USB Cable
  • 2pcs Coil-on-plug extension cord

Foxwell OS100 Oscilloscope Kit Includes:

Weight1.2 kg
Dimensions20 × 12 × 5 cm
