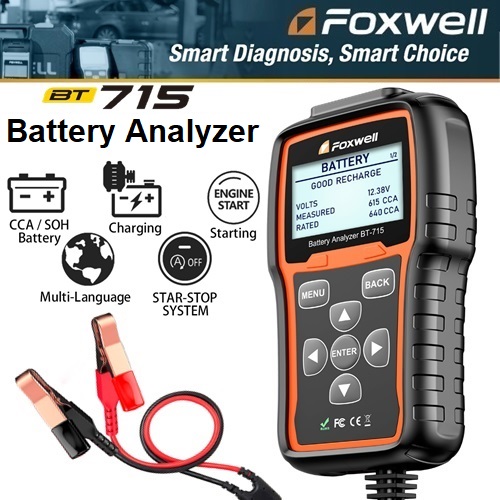

Foxwell BT715 Battery Analyzer / Tester

Original price was: R2,999.00.Current price is: R2,699.00.

SKU: Foxwell BT-715 Category: Tag:

Foxwell BT715 Battery Analyzer Support Multi-Language

The Foxwell BT715 Battery Analyzer is delicately developed to test 12V regular flooded, AGM/EFB flat plate, AGM/EFB spiral and gel batteries, Start-Stop AGM/EFB battery and 12V & 24V starting and charging system. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system.


Foxwell BT715 Battery Analyzer / Tester

The Foxwell BT715 Battery Analyzer / Tester is a professional battery tester for enthusiasts, small garages, independent repairs. The newly developed BT715 battery analyzer aims to test start-stop battery test function, no power specification.

Support Multi-Language:

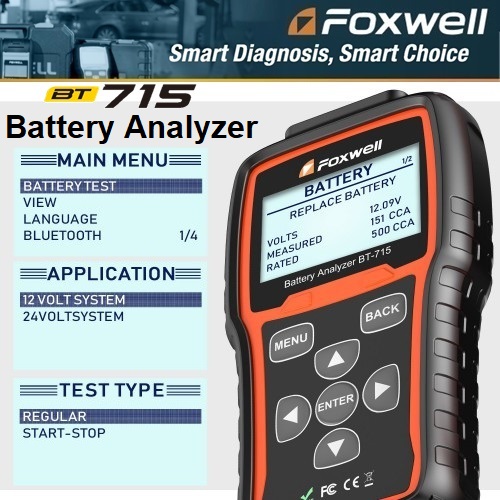

English, French, German, Hungarian, Japanese, Chinese, Korean, Polish, Portuguese, Russian, Spanish and Dutch (can reset any language as you need)

Foxwell BT715 Battery Analyzer Features and Benefits:

  1. Tests batteries from rated from 100 to 2000CCA.
  2. Support tests of multiple battery types: Regular flooded, AGM flat plate, AGM spiral and gel.
  3. Tests start: Stop AGM and EFB batteries.
  4. Tests multiple rating systems: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

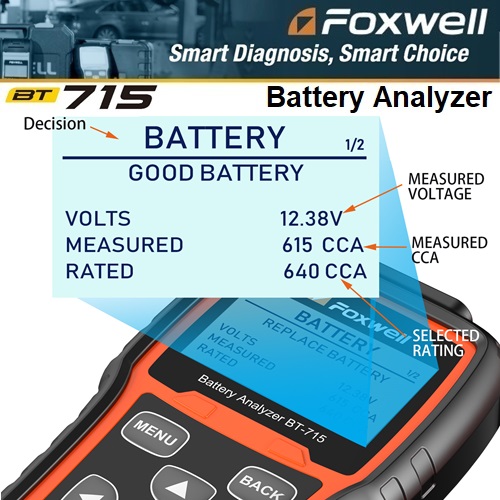

  5. SOC, SOH and resistance test result display makes technicians easier and faster to judge the battery status.
  6. Tests the batteries on the car directly – no need to remove the battery.
  7. Quick and accurate test result display in just 3 seconds.
  8. Tests 12- & 24-volt charging system.
  9. Advanced starter/alternator test.
  10. Quick starter analysis without disabling the ignition.
  11. Does not emit light, heat or spark, or discharge battery – keeps operation safe for all levels of users.
  12. Multilingual menu and test results.

BT715 Specifications:

  • Voltage Measuring:  6V-32V.
  • Battery Type: Flooded, AMG, GEL
  • Battery Rating: 100 to 2000 CCA
  • Standard support: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SEA.
  • Test start-stop AGM and EFB batteries.
  • Internal resistance.
  • Ripple voltage test.
  • Printer  No Bluetooth Printer.
  • Net Weight: 1.6KG
  • Dimension: 190*90*36mm (L*W*H)

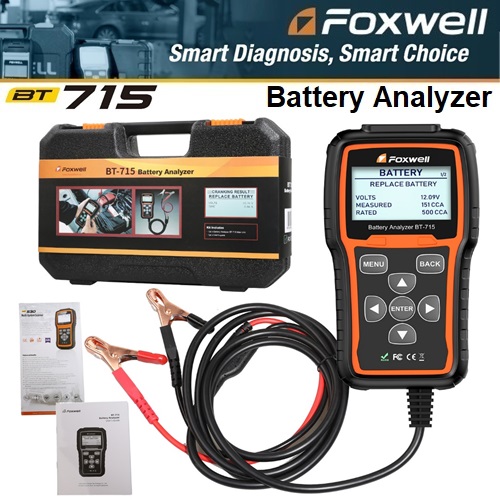

Package includes:

  • Foxwell BT715 Main Unit.
  • User’s Guide.
  • Blow Molding Case.

Foxwell BT715 Battery Analyzer / Tester Package List

Weight1.8 kg
Dimensions36 × 26 × 12 cm
